Volchar 40A Home EV Charger (Nema 14-50 plug version, with input cable)

Name: Volchar 40A Home EV Charger (Nema 14-50 plug version, with input cable)
Brand: Volchar
SKU: 45395256639781
Price: 599.0 USD
Availability: InStock

$599.00

1. Up to 9.6kW charging performance, 240V with adjustable current from 10A to 40A.
2. Comfortable handle and smooth charging plug; with 25-foot cable length cable that stays flexible even under -30℃.
3. Compact size with NEMA 4 grade alluminum alloy backplate, providing protection from UV rays. Great for both indoors and outdoors.
4. App control: you can set multiple charging plans based on time and electricity rates.Charging data is sent to users via the app, with Wi-Fi and Bluetooth connections provided. The Volchar App also supports Google and Alexa voice control.
5. Choose from hardwire or NEMA 14-50 plug options. Certified by FCC and CSA (complies with the UL standard).
6. Comes with 5 years' warranty, and professional customer service based in the US.

Publish Date: 2024-03-15

Fast, Free Shipping

30-Day Money-Back Guarantee

Hassle-Free Warranty

Lifetime Customer Support

Quick Preview

25-Foot Charging Cable

Ultra-durable and flexible cable to withstand extreme cold weather

Up to 9.6kW(40A) Output Power

(Level 2 240V 10-40A adjustable)

Anti-UV

Protect your charger from UV radiation damage

Compatible with All EV Models

Comes with J1772 plug compatible with all EV models in North America

Customer Support

Professional customer support team

Nema 4P Standard

Attained Nema 4P standard for maximum protection from harsh weather

CSA Safety Certifications

CSA C22.2 No. 280-16 , Conforms to UL 2594, UL 2231-1/2

Heat Dissipating Backplate

Stays cool even under direct sun exposure

Smart App

Schedule your charging via remote app control, supported by Bluetooth and Wi-Fi connections.

5 Years' Warranty

The Volchar 40A Level 2 EV Charger

Offers ultra-fast charging right in your home

level2

Up to 40A*240V=9.6kW

5X faster charging compared to Level 1 chargers

level1

Up to 16A*120V=1.92kW

Estimated Average EV Charging Times

EV Model

Battery Capacity(kWh)

EVs Max inputpower (level 2)

level 2 charge hours(40A*240V=9.6kW)

level 1 charge hours(16A*120V=1.92kW)

level 2 charge hours(32A*240V=7.68kW)

Tesla Model Y

75kWh

11.5kW

8.1h

39.1h

9.8h

Porsche Taycan

93kWh

11.0kW

10.6h

48.4h

12.1h

Chevrolet Bolt EUV

65kWh

11.0kW

7.4h

33.9h

8.5h

Ford Mach-E

72kWh

19.2kW

8.1h

37.5h

9.4h

Ford F-150 Lightning

130kWh

11.5kW

13.5h

67.7h

16.9h

Volkswagen ID.4

82kWh

12.0kW

8.5h

42.7h

10.7h

Ultra-Long Cable for Added Flexibility

Equipped with 25-foot maximum length cable, giving you more flexibility to charge where you want.

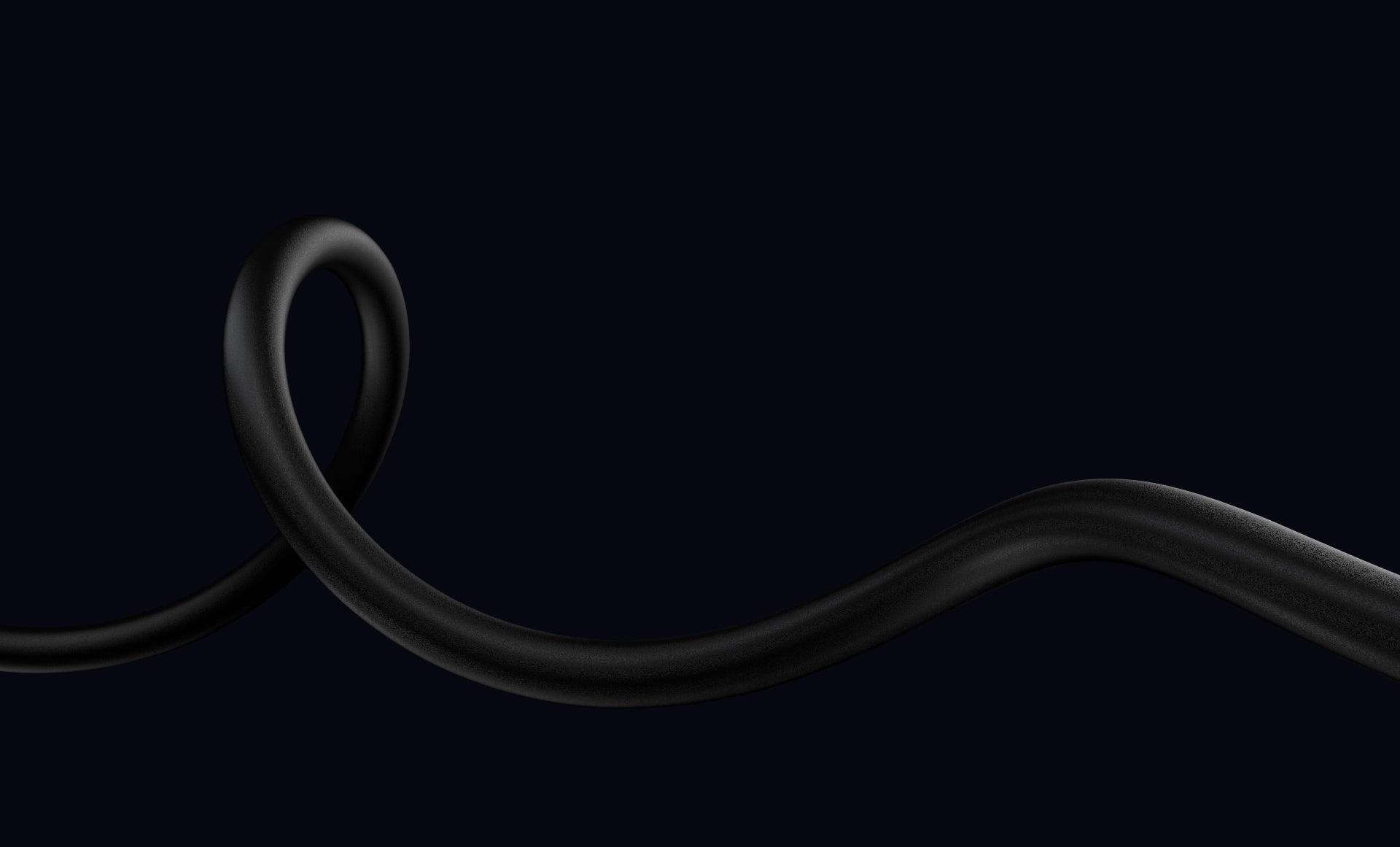

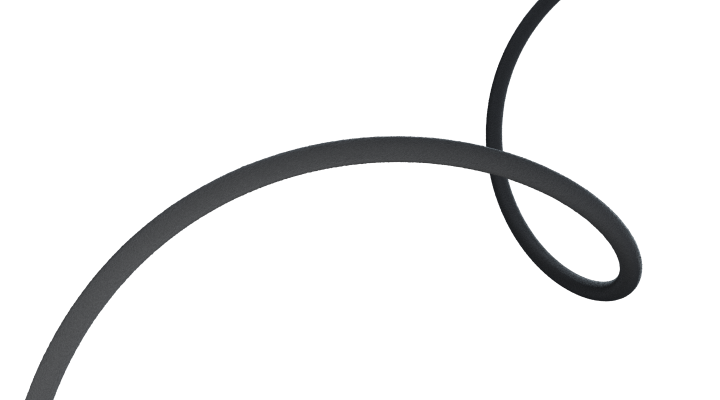

The Volchar charging cable

The Volchar charging cable stays flexible and malleable even in -30 ℃ (-22 ℉) temperature.

Built with long-lasting durable material to withstand daily friction on floor surfaces and even tires.

Why is the Volchar charging cable so durable?

High quality copper conductor

Our charging cables are built with top quality copper conductors, which are more efficient in transisting energy with less heat.

Ultra-durable composite rubber cable jacket

Our cables are protected from wear and tear with durable composite rubber material, ensuring maximum reliability and prolonged use.

Let's Charge Ahead and Conquer the Outdoors

With its sleek design, the Volchar home charger stands out in any environment. It's built to withstand the harshest conditions, helping you stayed charged anywhere.

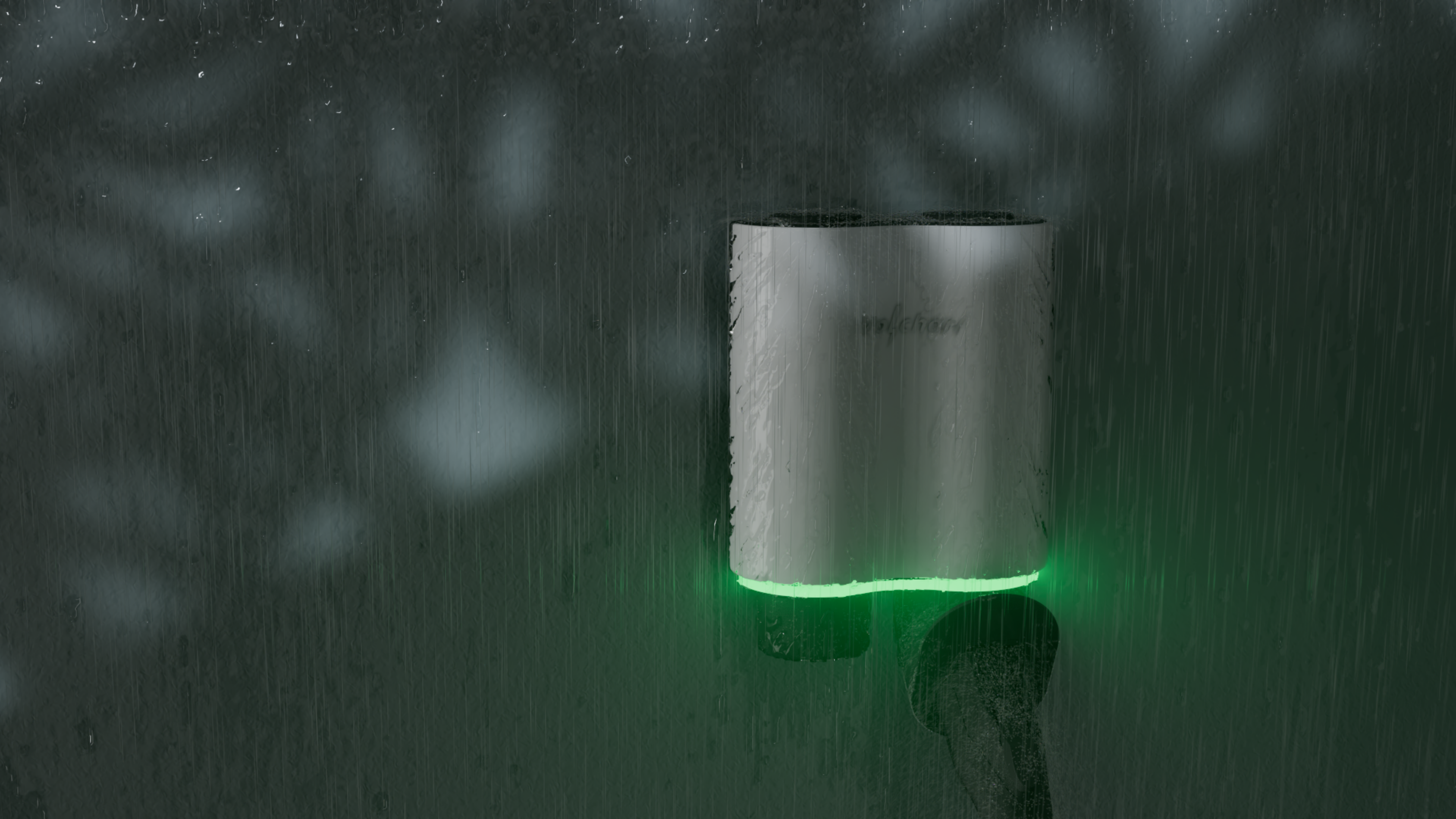

Water Resistant and Built to Withstand Harsh Weather

Volchar chargers have surpassed the NEMA 4 standard, meaning they are fully waterproof, and able to withstand rainstorms, sandstorms, and even blizzards.

Designed for UV and Outdoor Protection

Prolonged exposure to the sun and UV radiation will seriously undermine the strength of plastics, leading to color fading and weakened material that poses hazards.

Volchar chargers are made with UV-resistant materials, ensuring maximum safety and performance in the outdoors.

Enlarged Heat Dissipating Backplate

Equipped with a heat dissipating aluminum alloy backplate with a larger surface, Volchar chargers stay cool even at temperatures of up to 50℃ (122 F), when charging directly under the sun.

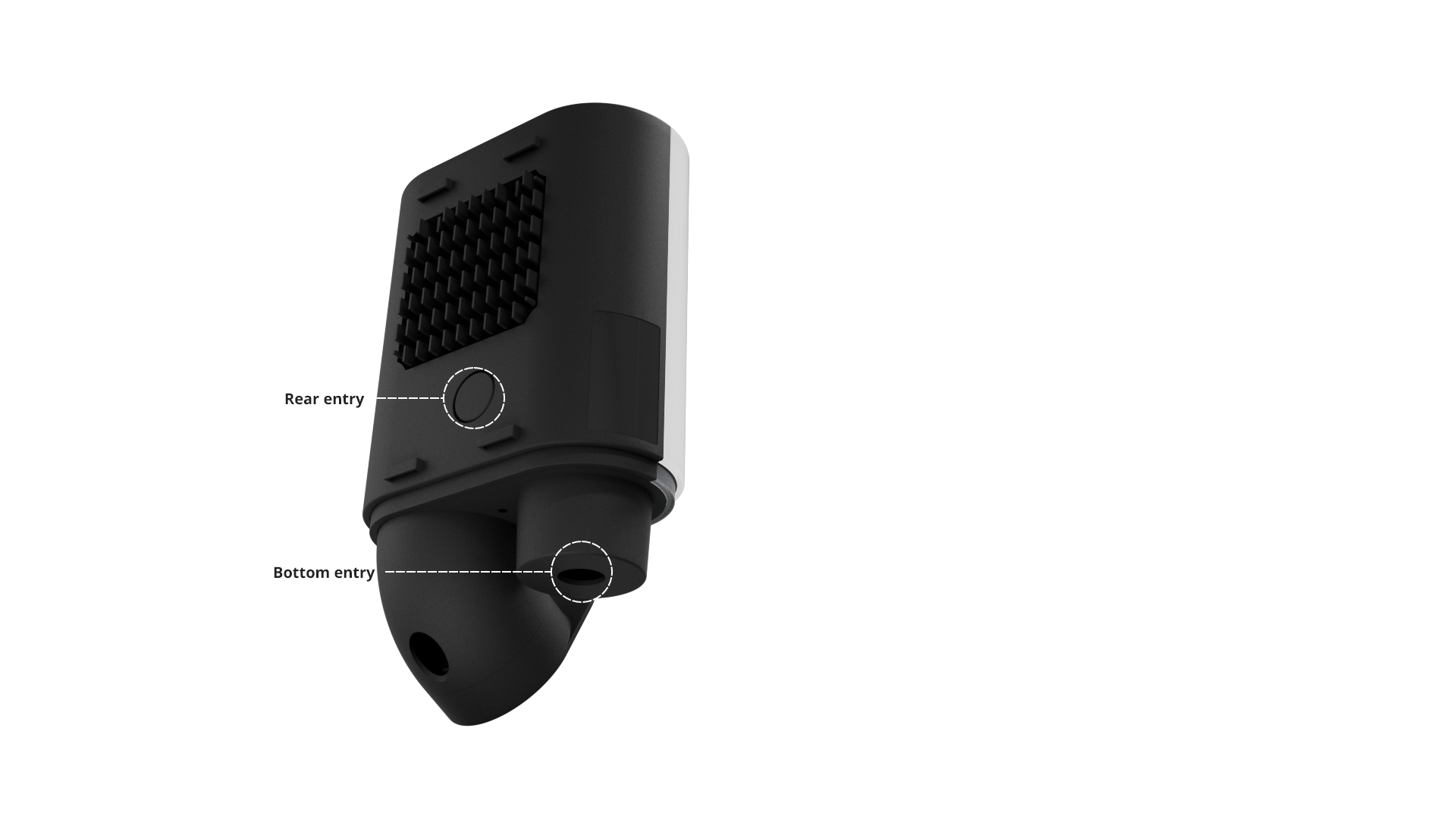

Plug-In and Hardwire Installation Options

Choose from hardwire or NEMA 14-50 plug options for our chargers. Install Volchar chargers simply by attaching them to a wall in your home or garage. For the hardwire option, cables can be connected via rear or bottom entry.

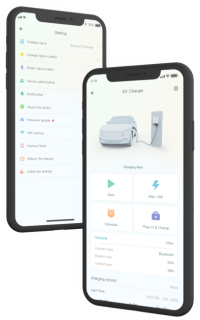

Introducing the Volchar App for More Intelligent Charging

Convenient, connected, and super smart.

Use the Volchar App (available on iOS and Android) to enhance your EV experience.

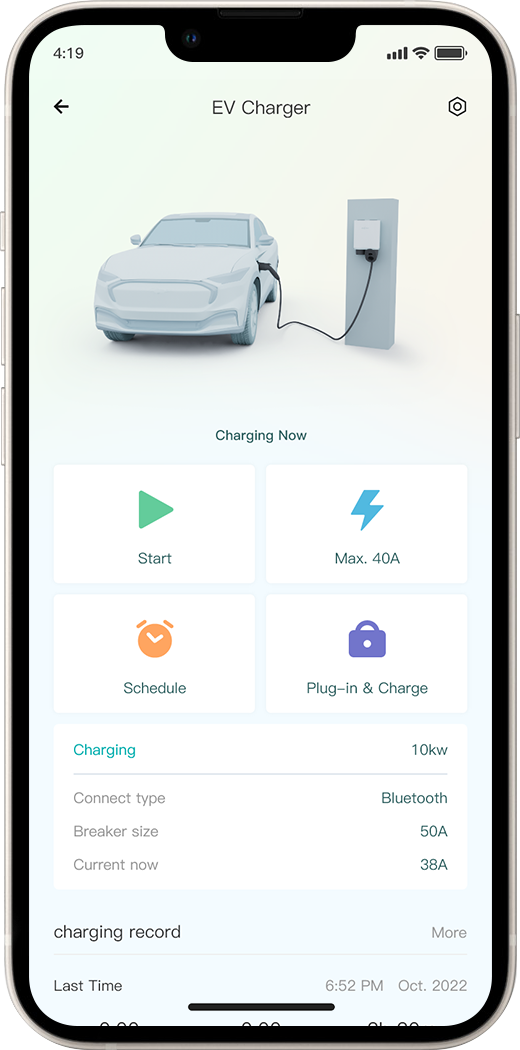

Plug In and Charge or Remote Control

Wherever you are, charge your vehicle on your own terms! If you charge outdoors, you would want to keep your charger safe. Just turn off the plug-in and charge button to lock your device for peace of mind.

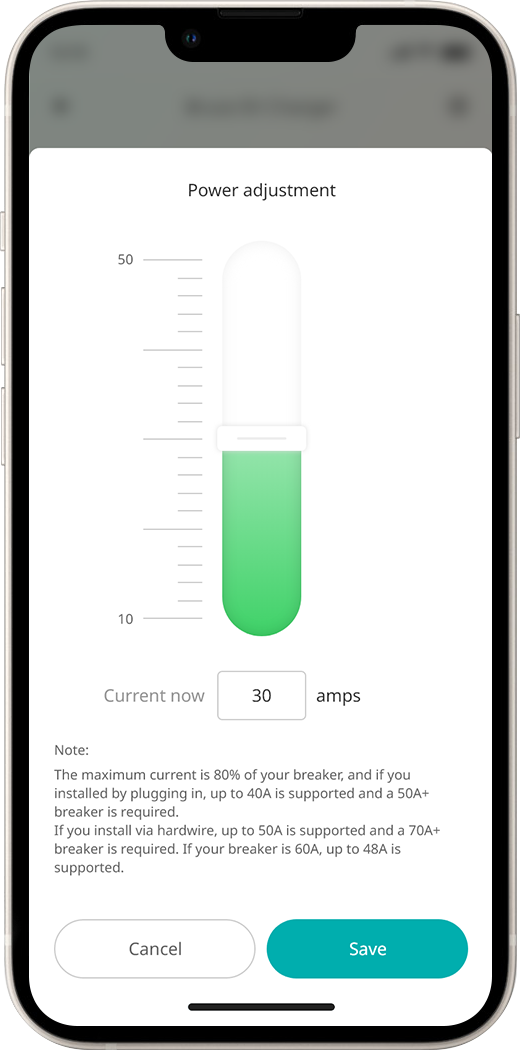

Adjust Charging Power with Ease

From 10A to 50A, adjust charging power as you like! Prolong your battery life with lower charging speeds, or juice up your vehicle with fast charges.

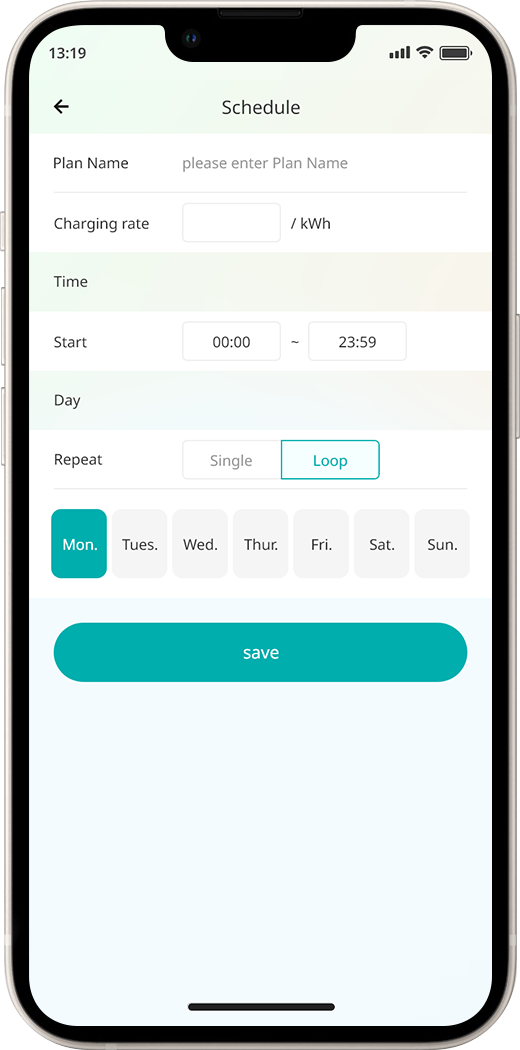

Schedule Charging When You Want

Save costs by charging during times of lower electricity rates with the Volchar App. Schedule the most convenient charging times, set reminders, and give multiple schedules different names all on our app.

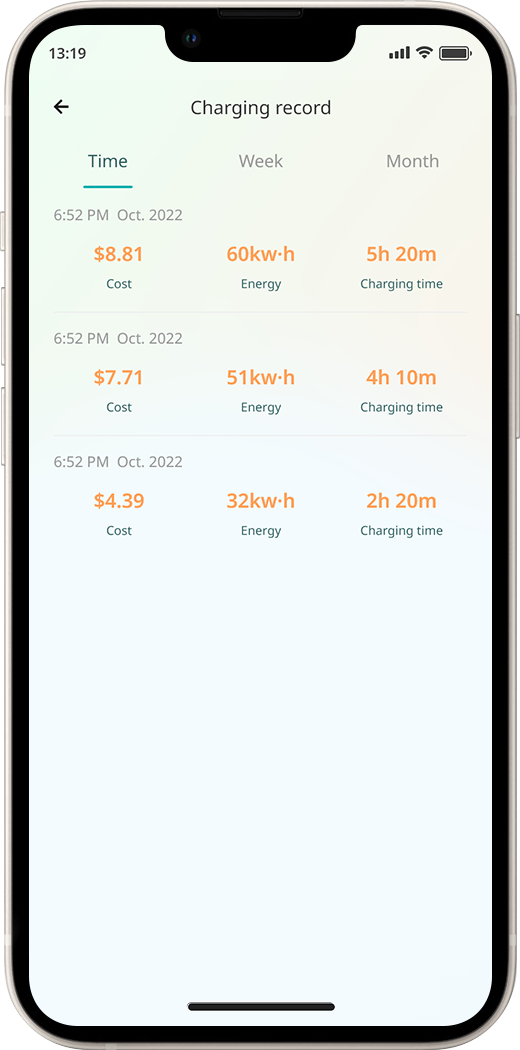

Keep Track of Your Data

Want to keep track of your charging history? No sweat. With every charge, historical data including cost, energy consumed, charging duration and time are sent to you via the app.

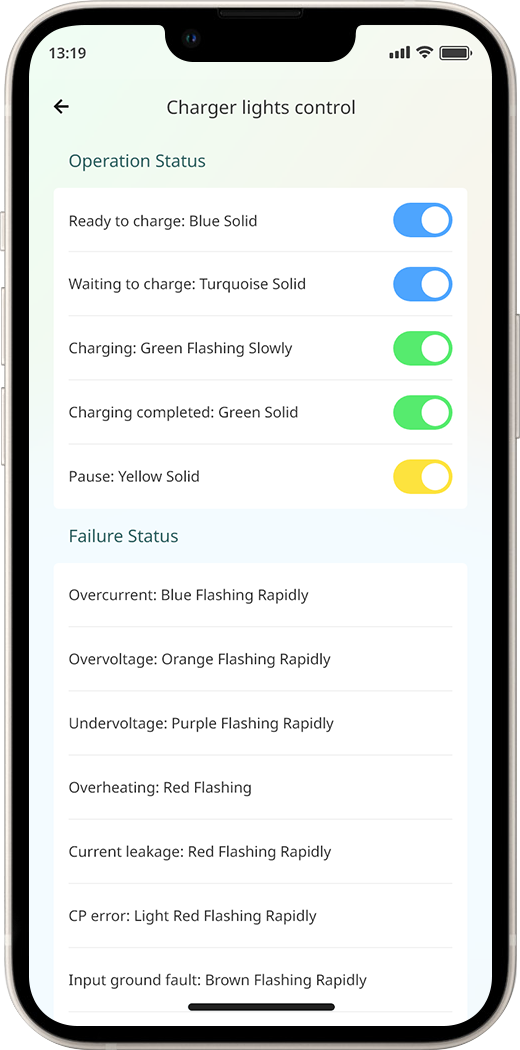

Lights On or Off

Charger lights notify you of charging statuses. You can charge with lights on or off, it's up to you!
* Note: For safety reasons, failure statuses cannot be turned off.

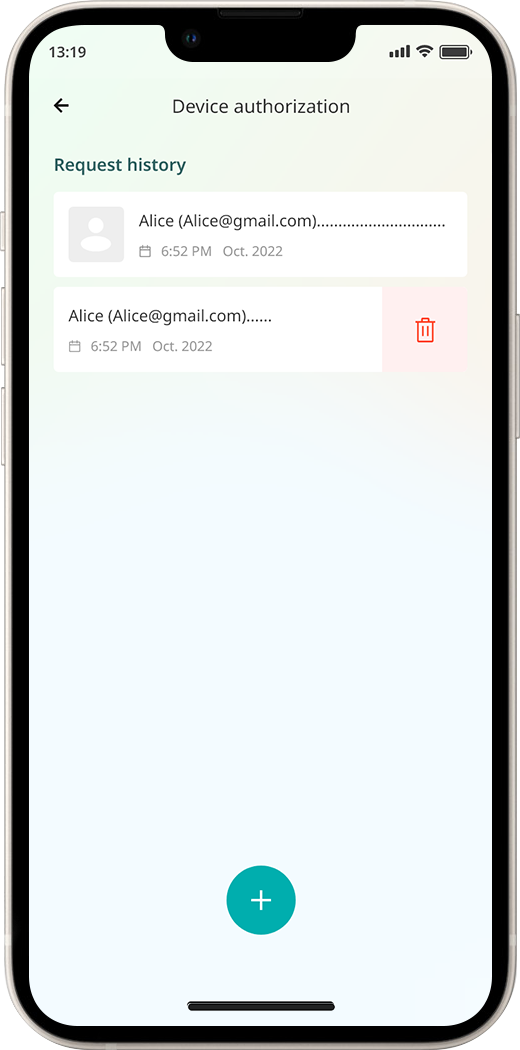

Authorization to Safeguard Your Device

Safeguard your charger with device authorization. Share authroization with family members, and add or delete users from your admin account easily.

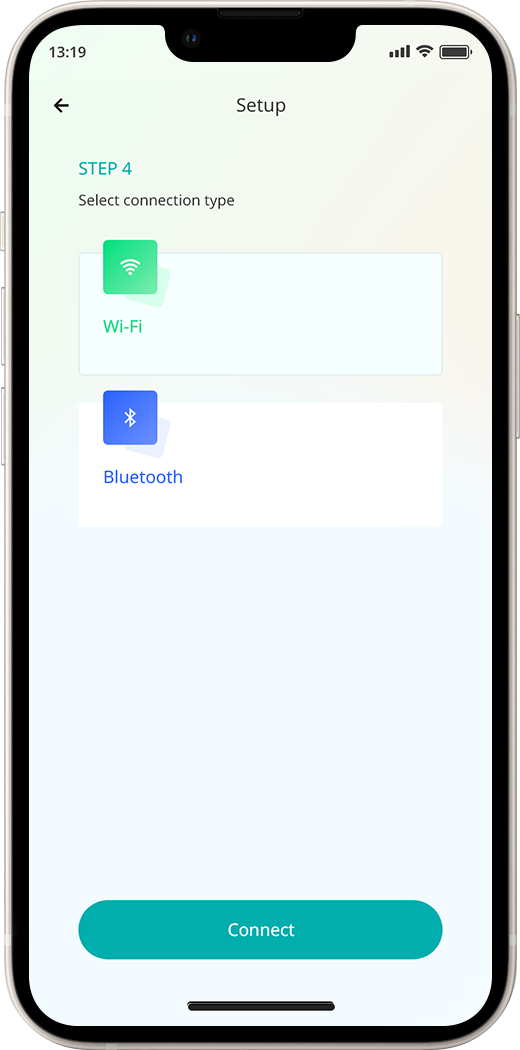

Wi-Fi and Bluetooth Supported

Stay connected to Wi-Fi for remote app control from anywhere. Even without Wi-Fi connection, you can use the Volchar App conveniently through Bluetooth.

More Super Convenient Features Await!

Additional features are available on the Volchar App for your total convenience, including notifications, firmware updates, and more.

Your Safety is Our Priority

Safety remains our top piority and at the core of our products. We strive to provide extra safeguards to eliminate any safety issues, for your total peace of mind.

Electrical safety

CAN/CSA-C22.2 No. 281.1-12, UL 2231-1
CAN/CSA-C22.2 No. 281.2-12, UL 2231-2
CSA C22.2 No. 280-16, UL 2594

Fire resistant

Our charger box shell is fire resistent,
protect your from incident fire damage.

Protection configuration

Protection for over-current, over-voltage,
under-voltage, grounding, surge, lightning,
over-temperature, leakage, short circuit.

Eligible for Multiple Rebates and Incentives

Policies vary between different states in the US, while the following are supported by Volchar and may be eligible for rebates

and incentive programs in certain states:

Level 2 240V Home EV Charger Type

Smart App for Scheduled Charging Plans

CSA Certification

Compare with other brands

Brand

Volchar

brand 1

brand 2

brand 3

brand 4

brand 5

Maximum output

40Amps/9.6kW

48Amps/11.5kW

50Amps/12kW

40Amps/9.6kW

Voice Control

✓

×

✓

×

Lighting Control

✓

×

charger Level

Level 2

Length of Cable

25-foot

24-foot

23-foot

25-foot

24-foot

Warranty

5 years

2 years

3 years

Enclosure Rating

Nema 4

Nema 3

Nema 4

Compatible

All

brand 1

All

Smart App

✓

×

Price

$599

$450

$740

$699

$400

Cable Performance

★★★

★

★★

★

* Note: The product prices and specifications shown in this list are for reference only. Market and product related information are subject to change.

Volchar Home EV Charger Specifications

Charging plug standard

SAE J1772

EV charging level

Level 2

Voltage

240V

Configurable current

From 10A to rated current(hardwired is required if over 40A)

Maximum output

12kW(50A Max)/9.6kW(40A Max)

Input

Plug connected (NEMA 14-50P Ground Up) or hardwired

Charging cable length

25Feet

Working environment

Indoor and outdoor

Working temperature

-22°F to 122 °F (-30~50℃)

Special protection

Anti-UV design

Dimensions

225*210*110mm (all cables and plugs are not included)

Weight

About 6.5KG(with output cable)

EMC compliance

FCC Part 15 Class B

What's in the Box

EV Charger with Charging Cable

Installation Guide

Amperage Labels

Wallplate

(M6*60) countersunk head screws

M8 wall anchors

L-shapedhex screwdriver

(M4*7) square head screw

Top cover

Bottom entry Cover

EV Charger with Charging Cable

Installation Guide

Amperage Labels

Wallplate

(M6*60) countersunk head screws

M8 wall anchors

L-shapedhex screwdriver

(M4*7) square head screw

Top cover

Bottom entry Cover
